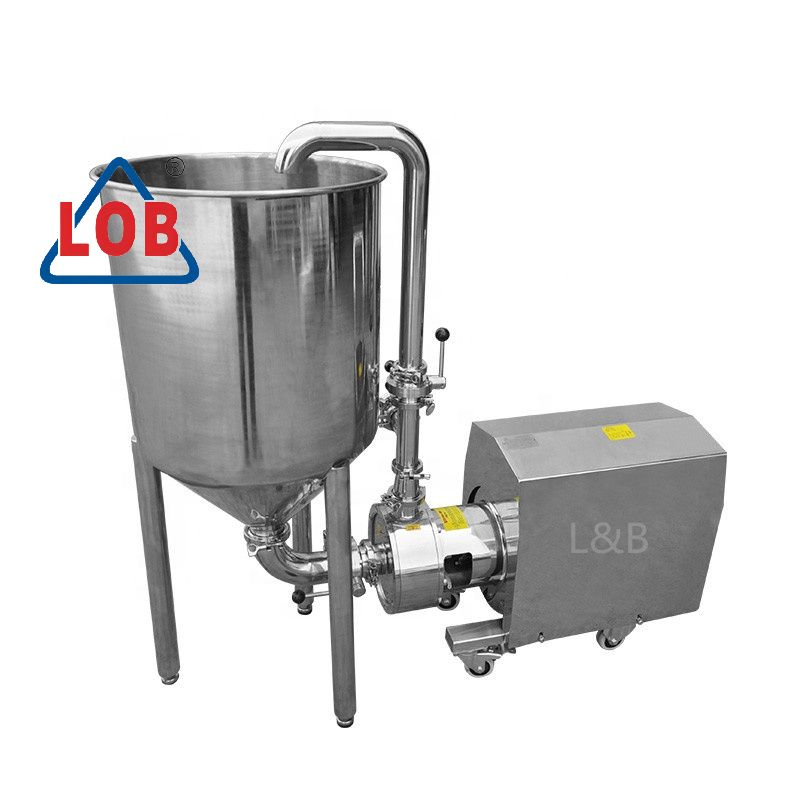

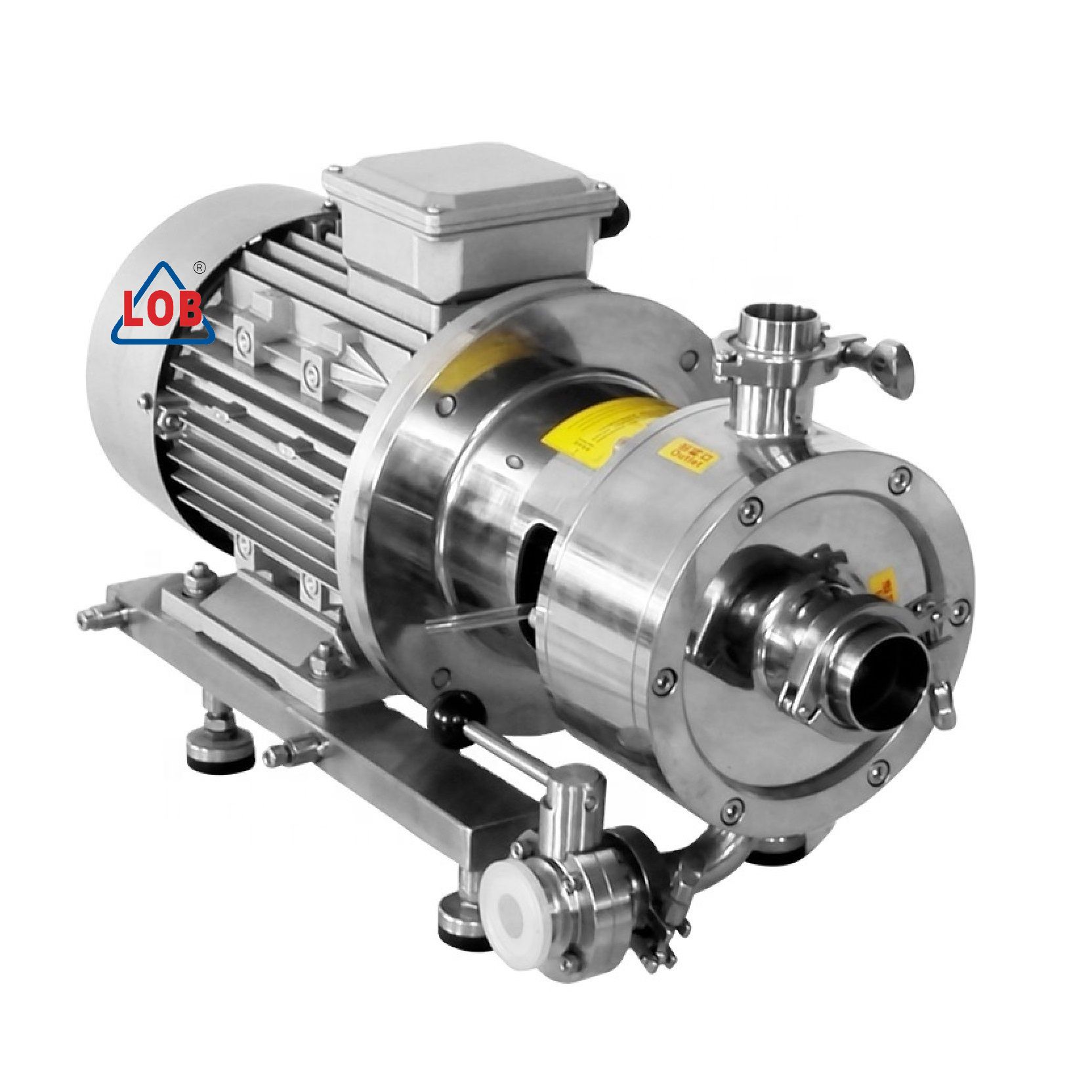

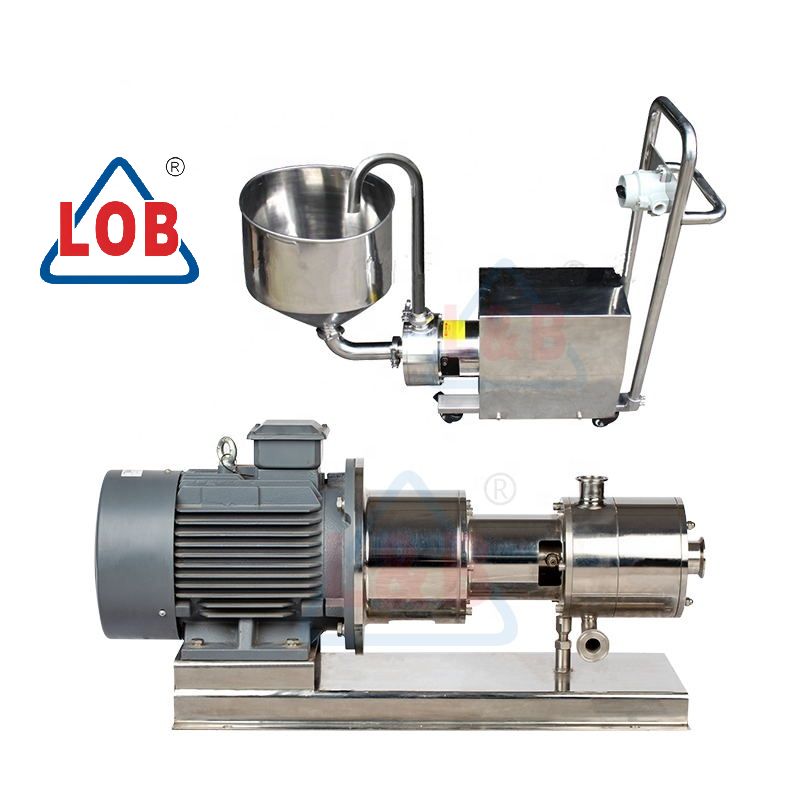

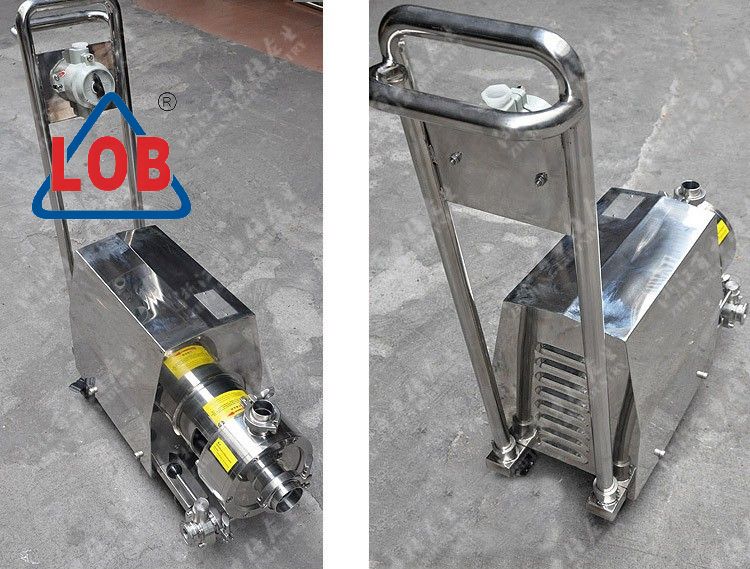

Inline High Shear Mixer Pump/ Homogenizer pump

Discover the innovation of LOB with our BRL series Inline High Shear Mixer Pump.

This exceptional inline mixer redefines emulsion manufacturing, excelling in the creation of viscous creams, lotions, and emulsions across cosmetics, pharmaceuticals, food, and chemicals. Seamlessly integrating into your production processes, the BRL series guarantees precision and efficiency, reflecting LOB's dedication to top-notch quality and cutting-edge solutions.

Elevate your product consistency and streamline your operations with the BRL Inline High Shear Mixer Pump.

Key Feature:

  • Mixing Capacity: 0-110T/H
  • Motor Power: 1.5KW-90KW
  • Construction: Material: Stainless steel 304 or SS316L
  • Connection: Tri-clamp or flanged or others.



[Usage and Benefits]

  • Rapid Mixing: Achieve rapid and thorough mixing of different ingredients in a continuous process.
  • Quick Homogenization: Rapidly homogenizes liquids and semi-solids for a smooth blend.
  • Compact Design: Space-saving and easily integrated into existing production setups.
  • Customizable Configurations: Available in various sizes and configurations to match specific production needs.
  • Mixing Capacity: 0-110T/H
  • Motor Power: 1.5KW-90KW
  • Construction: Material: Stainless steel 304 or SS316L
  • Connection: Tri-clamp or flanged or others.
  • Motor Type: Three-phase electric motor or single-phase according to your requirements






Rotary Lobe Pump: Technical Specifications

Model Power(kw) Speed(RPM) Capacity (1000L/Hour)
BRL1-60 1.5 2800 0-1.5
BRL1-100 2.2 2800 0-3
BRL1-130 4 2800 0-4
BRL1-140 5.5 2800 0-5
BRL1-165 7.5 2800 0-8
BRL1-180 11 2800 0-12
BRL1-185 15 2800 0-18
BRL1-200 22 2800 0-25
BRL1-210 30 2800 0-35
BRL1-230 45 2800 0-50
BRL1-245 55 2800 0-75
BRL1-260 75 2800 0-90
BRL1-275 90 2800 0-110
BRL1-280 132 2800 0-130








[User Guide]

  • Connect the mixer to the appropriate power supply.
  • Adjust the flow rate and shear rate based on your product requirements.
  • Feed the ingredients into the mixer using the appropriate inlet.
  • Monitor the mixing process and adjust settings as needed.
  • Regularly clean and maintain the mixer for optimal performance.
  • Ensure the mixer is properly grounded and secured before operation.
  • Carefully read the user manual before operating the equipment.
  • For further assistance, please contact our customer support team.
  • Package Includes:  user manual, 24/7 customer support
  • Warranty: 1-year full warranty
